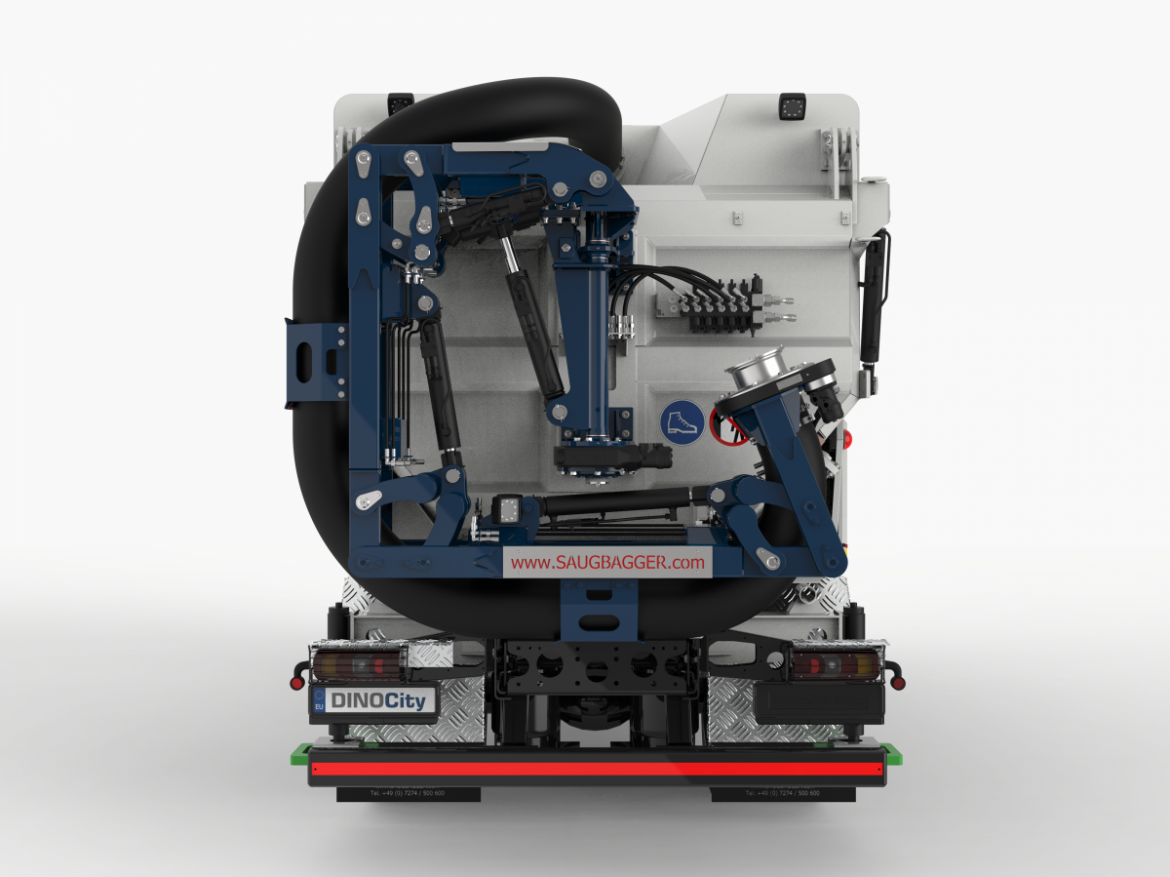

City Dino – Small Footprint

Super-strong suction excavator for the first step in suction technology with emptying capability in big bags

For works in inner city locations where access to larger suction excavators can be restricted the units are available in single and twin fan configurations with options of both remote control hydraulic telescopic or full power hose booms.
The City Dino provide users with performance levels in the ground that are similar to its Dino 3 siblings. Typically mounted to 12 – 16 tonne chassis the City Dino benefits from an on-board air compressor, self-cleaning in-line filtration with washable polymer filters, and is supplied with all standard excavation tooling as standard.
The equipment has a spoil capacity of 2-4m3and tips to the rear of the chassis either to the ground or into bags for later collection.

Technical Information

  • Container Volume: ca. 2-4 m³
  • Dimensions: 6,3 x 2,3/2,5 x 3,0
  • Air Compressor: 4,5 m³/min, 8 bar
  • Ventilator: Patented single or twin fan technology
  • Filtration System: Automatic self-cleaning system
  • Suction Hose Carrier: POWER ARM or MEGA ARM
  • Suction Hose: D = 200mm / 250mm
  • Remote Control: SPS Radio Remote Control
  • Chassis: 2-axle 12/15/16t (4 x 2)
